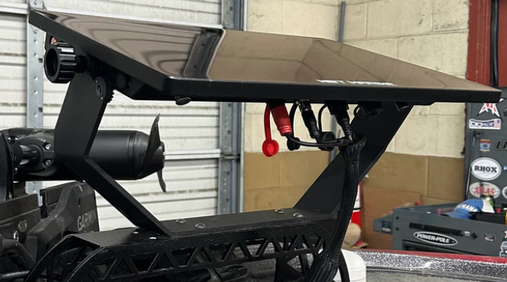

The All new 16 Inch Destroyer Units comes as a Plug And Play kit ready to link to your Garmin 86XX or 1243/1643 units. (see below for compatible unit lists)





Specifications

• Display Resolution - 1920x1080

• Weight - 4.5KG (10LBS)

• Waterproof - IP67

• Mounting Options - Included gimbal

• Touch screen

• Dimensions 13.6" x 8" x 16.5" diagonal

• Display Size 16.5" diagonal

• Glass Type - Optical Bonding, with Anti-Glare  UV coatings

• Brightness - 1500 NITS (vivid sunlight readable)

•  Operational Temperature - -20c to +75C (-4F to +170F)

• Touch Type - 10 Points Capacitive touch, Touch ON/OFF control

• Remote OSD - Included remote control

• Rugged Shock - 20G

•  NOTE - Polarization has been upgraded



Sonar Features and Compatibility

• LIVESCOPE - All compatible units up to 2 Live scopes

• SIDE VU / DOWN VU - All compatible XSV units or GCV box

• Up to 6 Split screen boxes!



Cords/Cables

• HDMI CABLE - 8 meters (26 feet)

• DC POWER CABLE - 4 meters (13 feet)

• USB CABLE - 8 meters (26 feet)



Electrical Features

• POWER INPUT - 1 x DC 10V to 28V

• TYPICAL CURRENT DRAW AT 12 VDC - 4.2 A

• MAXIMUM CURRENT DRAW AT 12 VDC - 6A



Compatible Chart plotters

• GARMIN 8700

• GARMIN 1643 (XSV) or NON

• GARMIN 8610 8410 (XSV) or NON - some limitations

• GARMIN 8612 8412 (XSV) or NON

• GARMIN 8616 8416 (XSV) or NON

• GARMIN 1243 (XSV) or NON - some limitations
